MPI SiPH Probe Systems

MPI designed dedicated SiPH upgrades for its well known 200 and 300 mm probe systems, which includes:

    • Various options of high-precision fiber alignment systems for ultra-fast scanning routines
    • Multiple measurement capabilities for O-O, O-E, E-O and E-E device configuration
    • Integrated Z-sensing for detecting the fiber to wafer contact point
    • Crash protection when using two optical fiber arms
    • Wide temperature range from -50°C to 200°C
    • Optional dark box for testing in light tight environment
    • Extensive software package for supporting easy integration to operator’s test executive

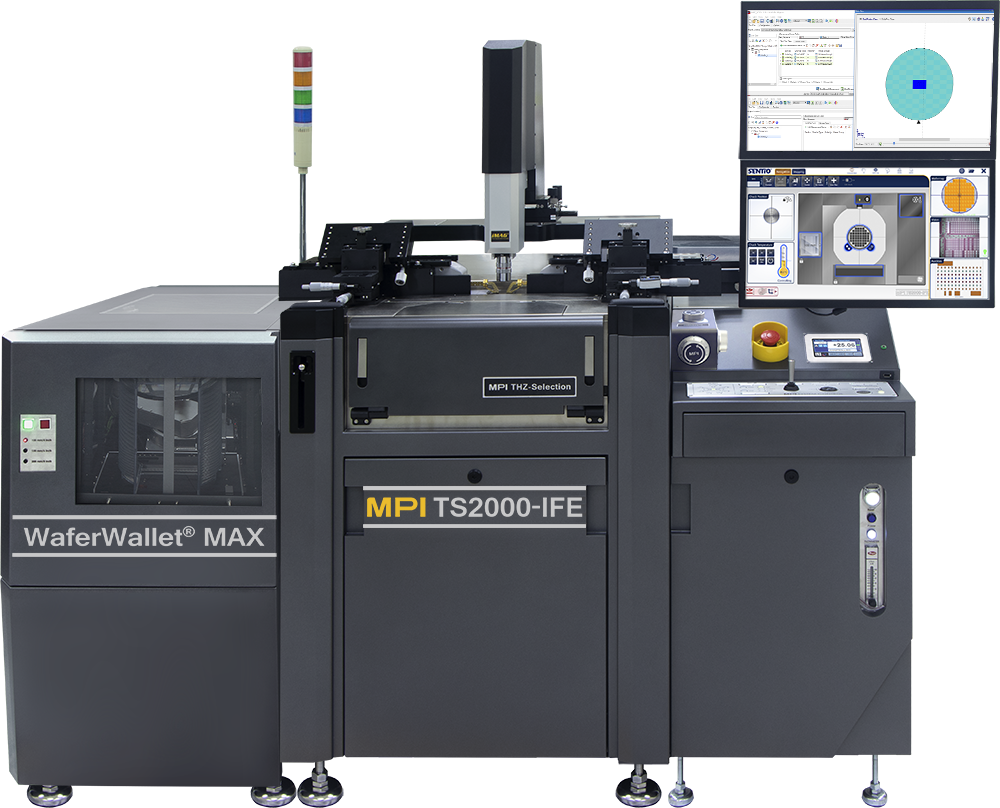

    • Probe system compatibility:  TS2000-IFE ,  TS2000-SE ,  TS3000 ,  TS3000-SE ,  TS3500 and TS3500-SE

SiPH Upgrade Data Sheet

Features & Benefits

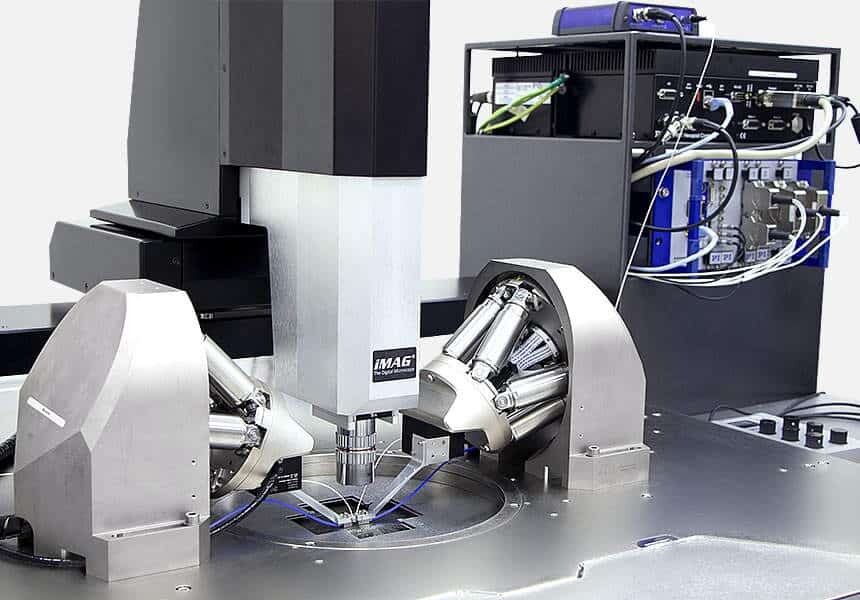

Silicon Photonics Fiber Alignment Systems



A Variety of fiber positioning stages and the related software can be easily used with the MPI SiPH probe system. The shortest platen to chuck distance allowing shorter fiber arms with higher stability and less measurement noise. Solutions for just single fiber or multi-fiber-arrays are available, all integrated with automated Z-sensing unit for constant distance of few micrometer to the optical I/O.

Seamless Probe Station Integration



Necessary optical alignment stages, such as the hexapod, are fully integrated into the SENTIO® probe station control software. Those are operated just like any other automated positioner including its additional alignment features. And not only integrated in the multi touch software, even the hardware control panel supports the SiPH positioner type.

For easy test executive integration of the SiPH functionality MPI is providing free sample scripts. Those are covering all necessary operation required for automated testing.

Embedded Hardware Control



The SiPH components shelf is designed to hold all the positioning control hardware, completely integrated without adding additional floor space. It is placed in user friendly distance for convenient setup operation. Additionally the standard probe station instrument shelf is available to place all required optical and electrical measurement equipment.

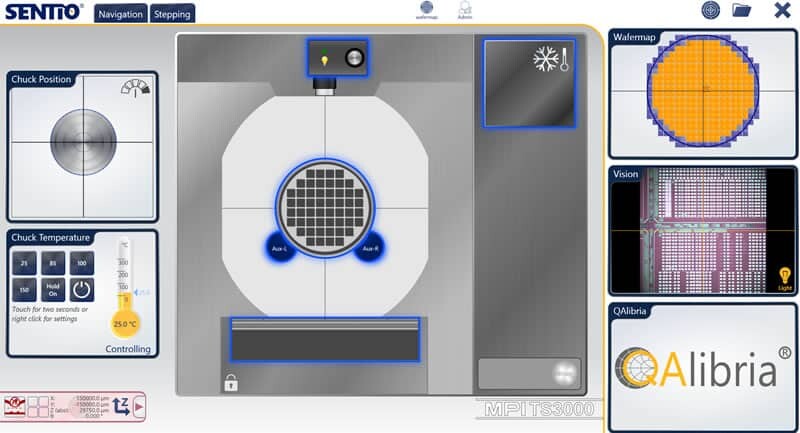

Software Suite SENTIO®



MPI automated engineering probe systems are controlled by a unique and revolutionary, multi-touch operation SENTIO® Software Suite – simple and intuitive operation saves significant training time, the Scroll, Zoom, Move commands mimic modern smart mobile devices and allows everyone to become an expert in just minutes. Switching between the active application and the rest of the APPs is just matter of a simple finger sweep.

For easy test executive integration of the SiPH functionality MPI is providing free sample scripts. Those are covering all necessary operation required for automated testing.
